🧭 Overview

This guide explains how to install and run Mango Automation as a Docker container on an Ubuntu host. It covers:

1. Installing Docker

2. Pulling and running the Mango image

3. Editing mango.properties inside the container

4. Viewing Mango log files via Docker

5. Configuring persistent mounts and networking

⚙️ Prerequisites

• Ubuntu 18.04+ or compatible Linux distribution

• Sudo privileges on the host

• Internet access to download Docker and Mango images

▶️ Step 1: Install Docker on Ubuntu

1. Follow the official Docker instructions for Ubuntu:
   🔗 Install Docker Engine on Ubuntu

2. After installation, verify Docker works by running:

   sudo docker run hello-world

   • You should see “Hello from Docker!” confirming a successful install.

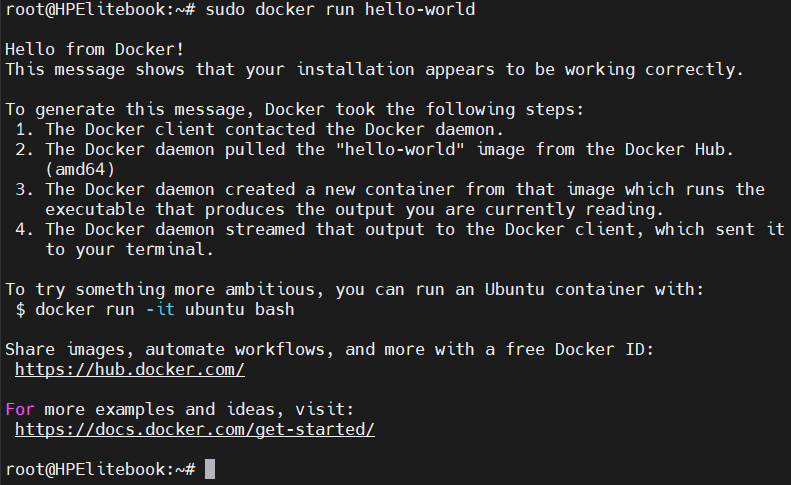

Alt text: Docker “Hello from Docker!” verification message

▶️ Step 2: Pull the Mango Docker Image

1. Pull the latest Mango image from GitHub Container Registry (current version as of writing: enterprise-m2m2-core-5.4.1):

   docker pull ghcr.io/radixiot/mango:latest

2. Confirm the image is available locally:

   docker images ghcr.io/radixiot/mango:latest

Alt text: Terminal showing Mango image downloaded

▶️ Step 3: Run the Mango Container

Use docker run to launch Mango, exposing its HTTP, HTTPS, and internal API ports, and configuring auto-restart:

docker run -d --name mango -p 8080:8080 -p 8443:8443 -p 9090:9090 --restart unless-stopped ghcr.io/radixiot/mango:latest

• -d: Run in detached mode

• --name mango: Name the container “mango”

• --restart unless-stopped: Automatically restart Mango if it stops or on host reboot

Alt text: Starting Mango container with Docker command

▶️ Step 4: Verify Container Status

1. Check running containers:

   docker ps

   You should see the “mango” container listed with its ports.

2. View resource usage:

   docker stats mango

3. Confirm port mappings:

   docker port mango

   Should show 8080→8080, 8443→8443, 9090→9090.

Alt text: docker ps and docker port mango confirming container and ports

▶️ Step 5: Access the Mango Web UI

Once the container is running, open your browser and navigate to:

https://<host-ip>:8443/ui/login

• Default credentials:

  • Username: admin

  • Password: admin

Alt text: Mango Automation default login page

🛠 Step 6: Edit mango.properties Inside the Container

Mango’s main configuration file, mango.properties, resides at /opt/mango-data/mango.properties in the container. If you need to modify ports, SSL, or other settings, use one of these in-container methods—no vi or nano needed.

1️⃣ Method A: Use sed for In-Place Edits

To edit a single property (e.g., change HTTP port to 8081):

docker exec -it mango bash -c "
sed -i 's/^web.port=8080/web.port=8081/' /opt/mango-data/mango.properties
"
docker restart mango

• Matches lines beginning with web.port=8080 and replaces with web.port=8081.

• Restart Mango to apply changes.

2️⃣ Method B: Append via Here-Document

To append new properties (e.g., disable SSL):

docker exec -it mango bash -c "
  cat << 'EOF' >> /opt/mango-data/mango.properties
# Disable embedded SSL
ssl.enabled=false

# Custom property additions
custom.setting.example=true
EOF
"
docker restart mango

• Appends everything between EOF markers to the end of mango.properties.

• Restart Mango after saving.

Alt text: Appending new properties to mango.properties via here-document

3️⃣ Method C: Overwrite with Here-Document

To rebuild the entire file from scratch:

docker exec -it mango bash -c "
  cat << 'EOF' > /opt/mango-data/mango.properties
# Mango properties rebuilt on $(date)
web.port=8081
ssl.enabled=false
# Add additional settings here...
EOF
"
docker restart mango

• > mango.properties replaces the file.

• Useful when applying a known-good template.

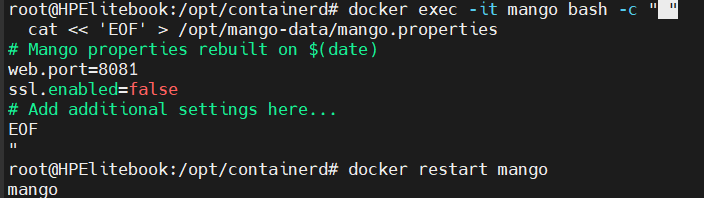

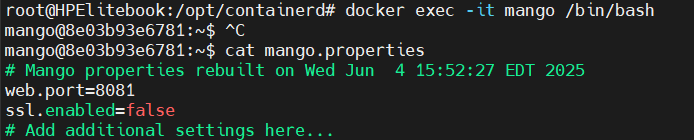

Alt text: Overwriting mango.properties in the container

🔍 Step 7: Check Mango Log Files via Docker

Mango writes log files under /opt/mango-data/logs/ inside the container. To follow logs:

1️⃣ Tail Standard Output / Error

Use docker logs to view what Mango prints to stdout/stderr:

docker logs -f mango

• -f (follow) streams new log lines in real time.

📸 [Insert Screenshot: Terminal running docker logs -f mango]

Alt text: docker logs streaming Mango container output

2️⃣ Tail Specific Log Files Inside Container

To see full log details (e.g., ma.log):

docker exec -it mango bash -c "
  tail -f /opt/mango-data/logs/ma.log
"

• Replace ma.log with any other logfile (e.g., hibernate.log, module-xyz.log).

• Press Ctrl+C to exit tailing.

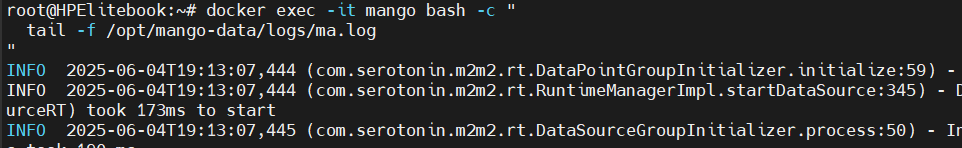

Alt text: Tailing Mango’s main log file inside container

🏷️ Step 8: Bind-Mounting for Persistent Configuration (Optional)

For easier editing without repeatedly using docker exec, bind-mount a host directory into the container:

1. Stop and remove the existing container:

   docker stop mango
   docker rm mango


2. Start Mango again, bind-mounting a host directory (e.g., /home/ubuntu/mango-data) to /opt/mango-data:

   docker run -d --name mango -p 8080:8080 -p 8443:8443 -p 9090:9090 --restart unless-stopped -v /home/ubuntu/mango-data:/opt/mango-data ghcr.io/radixiot/mango:latest



3. On the host, edit /home/ubuntu/mango-data/mango.properties with any local editor:

   nano /home/ubuntu/mango-data/mango.properties

4. After saving, restart the container so Mango reloads the file:

   docker restart mango

Alt text: Editing mango.properties on host with a text editor

⚙️ Step 9: Networking Options (Optional)

To place Mango on a custom Docker network:

1. Create a network:

   docker network create mango-net


2. Run Mango on that network:

   docker run -d --name mango --network mango-net -p 8080:8080 -p 8443:8443 -p 9090:9090 --restart unless-stopped ghcr.io/radixiot/mango:latest

3. Mango is then reachable at https://<host-ip>:8443 within that network.


🔄 Summary of Common Commands

# Install Docker (Ubuntu)
sudo apt update
sudo apt install docker.io
sudo systemctl
enable --now docker

# Pull Mango image

docker pull ghcr.io/radixiot/mango:latest

# Run Mango container
docker run -d -p 8080:8080 -p 8443:8443 -p 9090:9090 --restart unless-stopped ghcr.io/radixiot/mango:latest

# Edit properties via sed
docker exec -it mango bash -c "sed -i 's/^web.port=8080/web.port=8081/' /opt/mango-data/mango.properties"
docker restart mango

# View logs
docker logs -f mango
docker exec -it mango bash -c "tail -f /opt/mango-data/logs/ma.log"

# Stop & remove container
docker stop mango
docker rm mango
